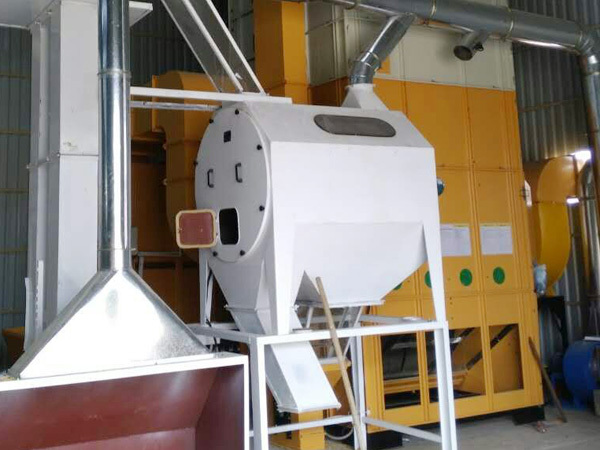

DYSC Cylindrical pre-cleaner
DYSC Cylindrical Cleaner is a kind of unprocessed grain cleaning equipment.It is mainly used for remove big impurities of the raw rice,such as stem,rope,straw, stones ,etc.Also it can preliminary clean wheat,oil plant,corn. This equipment is widely used in rice processing, grain processing, and feed processing industries.It is an ideal equipment for cleaning large or small impurities and stones in the rice.
Cylindrical pre-cleaner
Technical parameters:
| Model | DYSC-80 | DYSC-100 | DYSC-125 | DYSC-180 | DYSC-240 | DYSC-320 |
| Sieve cylinder diameter(mm) | Ø800*1000 | Ø1000*1120 | Ø1250*1250 | Ø1000*1800 | Ø1200*2400 | Ø1200*3200 |
| Output(t/h) | 8-11 | 11-15 | 15-25 | 30-50 | 35-50 | 50-65 |
| Power(kw) | 1.1 | 1.1 | 1.5 | 1.5*2 | 1.5*2 | 2.2*2 |
| Air-suction volumn(m3/min) | 12-15 | 15-18 | 20-22 | 55-60 | 65-75 | 80-100 |
| Dimension(L*W*H)(mm) | 1300*960*1300 | 1500*800*1165 | 1700*900*1700 | 2960*1360*1905 | 3560*1610*2555 | 4360*1610*2555 |
| Weight(kg) | 250 | 330 | 400 | 1000 | 1200 | 1400 |
This DYSC Cylindrical Cleaner Characteristics:
• Cylindrical shape;
• Small required power,large processing capacity;
• Small footprint,small weight;
• Simple structure,high efficiency;
• Low energy consumption,low noise;
• Easy operation and maintenance;
• Can remove many kinds of impurities;
