Big automatic rice mill plant

Complete Rice Milling Unit / Chat online / Give me a price

The big automatic rice mill plant is composed of a wind suction type stone removing machine, a husking machine, a gravity valley rough separating machine, a rice milling, a two-way rice milling machine, a white rice classifier, the bucket conveyor, an electric control cabinet, and the like, and with automatic operation, high rice yield, no pollution, easy operation and maintenance. The big automatic rice mill plant from Doing Company not only has the characteristics of high yield, less broken rice and good process effect, but also can add water spray mechanism. It can be water-milled when needed, and has obvious polishing effect, good color and no impurities, it is currently an excellent automatic rice mill plant in China.

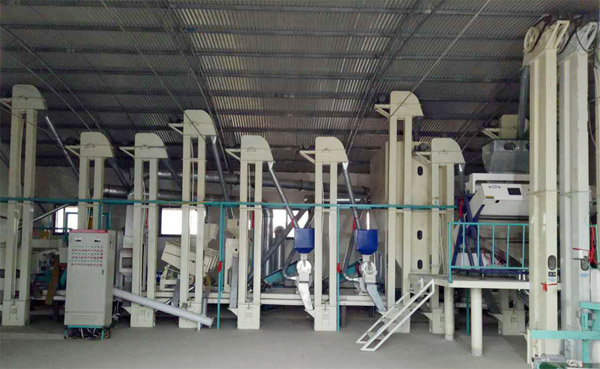

rice mill plant

Automatic rice mill plant

The main machine configuration part in the fully automatic rice mill plant introduction:

1. Paddy cleaner: The paddy cleaner can effectively remove large debris such as wheat-straw, straw, stone, and twine mixed into rice, effectively avoiding the failure of downstream processing equipment or damage of parts. The utility model pre-cleaner has the advantages of good cleaning effect, simple structure, convenient operation, stable operation, small occupied area, small power consumption, convenient replacement of the screen cylinder and maintenance.

2. De-stone machine: automatic rice mill plant equipped is efficient de-stone machine, also is a closed de-stone machine, can preventing dust from rising, making it more environmentally friendly and making the production workshop clean and hygienic.

3. Rice huller machine: High efficiency rice huller machine, faster, not easy to block the machine, rice huller can remove the rice shell, reduce the grain damage of the skin, keep the brown rice intact.

rice mill plant

After processed white rice

4. Rice husk and brown rice separator: using wind blowing, sifting and other treatment methods to separate large and small solid impurities in grain and grain crops to obtain clean brown rice. The grain separation sieve is a newly designed product with the advantages of high separation effect, convenient and quick removal and washing.

5. Rice whitening machine: used for brown rice and whitening, with the advantages of easy disassembly, high efficiency, complete grain and so on. After this part processing in the rice mill plant, can get clean、glossy rice.

6. Broken rice sieving machine: sieving the broken rice out, improve the integrity of rice, and easy for bagging, convenient for users to packing rice.

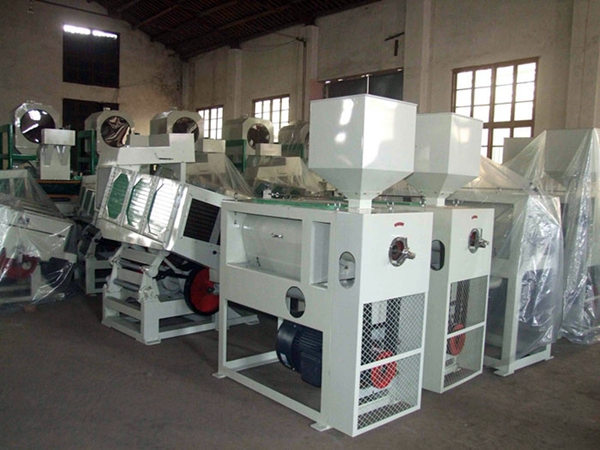

rice miller

Main paddy processing machines

7. Powder mill: used to crushing the chaff, the crusher in Doing Company supplied automatic rice mill plant has the advantages of quick disassembly, and wear resistance. Crushed chaff is a good material for animal feed.

8. The automatic bran discharge device Doing Company developed eliminates the need for manual bagging, automatic put the bran into bags, saving time and effort.

9. Bucket elevator: used to lift paddy into the de-stone machine, and lift brown rice into the grain separation sieve. Bucket elevator is the most popular conveyor used for rice processing plant.

10. Control box: centralized operation control box, the buttons are simple and clear, easy to operate, easy to use.

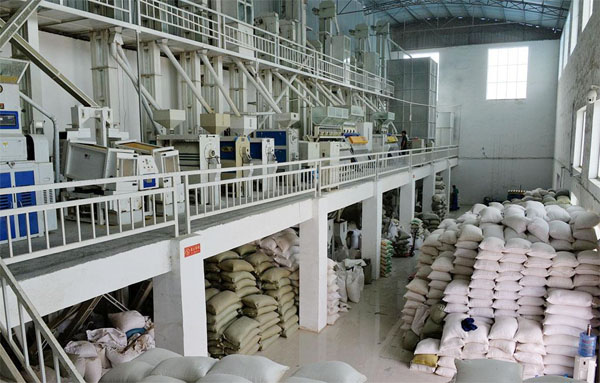

rice mill plant

Big rice mill plant

Working principle of DOING big automatic rice mill plant:

The material(rice) of the big automatic rice mill plant enters the whitening chamber by the flow adjusting mechanism through the feeding hopper, and is sent to the sanding roller by the screw head and spirally advanced along the surface of the sanding roller. The sharp sand blade on the surface of the diamond sanding roller rotating at a certain line speed is ground. The rice skin layer is roughened, and the rice grains and the rice grains, the rice grains and the rice sieves are rubbed against each other to cause poblishing and whitening. At the same time, the bran powder is forced out of the rice grains by the blasting action, and discharged from the sieve holes.

rice milling factory

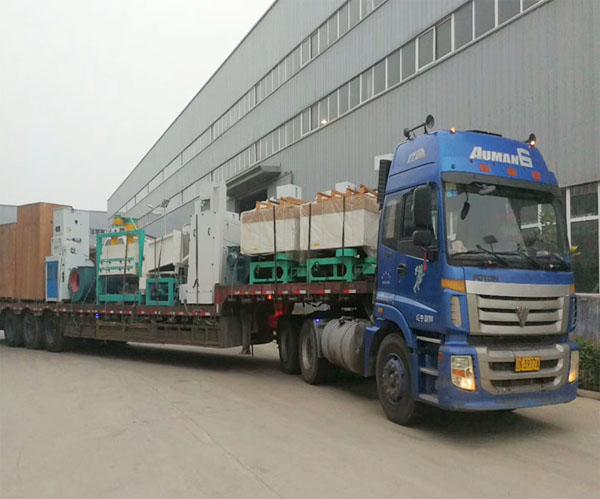

Rice mill plant machines loading and delivery

The automatic rice mill plant use precautions:

1. When using the motor as the power for the rice processing plant equipment, first make sure that the power cord is firmly connected, and tightly wrap it and pay attention to the installation of the ground wire.

2. Must pay attention to continuous and evenly put the paddy into, and the amount of input should be appropriate. If it is input intermittently, it will inevitably affect the production efficiency of the equipment. If the input amount is too large and the machine is overloaded, the equipment will be stuck, which will cause the motor to burn and damage the equipment.

3. The user should pay attention to the processing of paddy water content can not exceed 20%. If the paddy's water content too high, the normal effect will not be achieved, and even equipment failure will occur.

4. Before starting the operation of big automatic rice mill plant equipment, be sure to place it on a flat surface to ensure that the machine can operate smoothly and firmly, so as to avoid the vibraction of the rice processing equipment during operation. 5. Before the end of the rice processing equipment work, the input rice should be completely removed and discharged, so that the machine can be stopped at an empty load, but the machine is prohibited from being stopped during work/rice milling process
